Two rolls of polyester-Lycra fabric may have the same GSM, DIA, colour and elastane percentage, yet behave very differently during garment manufacturing.
One fabric may retain its dimensions after washing, while the other shrinks, curls, loses stretch or becomes distorted.
The difference may not be caused by the yarn or knitting process alone.
It may originate from a critical textile finishing process known as heat setting.
Heat setting is widely used to improve the dimensional stability and structural consistency of synthetic textile fabrics.
However, polyester-Lycra fabrics require careful processing because polyester and elastane respond differently to heat and mechanical tension.
Incorrect temperature, excessive stretching or unsuitable overfeed can affect the final fabric's width, GSM, appearance and elastic recovery.
For garment manufacturers, clothing brands and bulk fabric buyers, understanding heat setting can help explain why fabrics with similar specifications sometimes perform differently.
This guide explains how heat setting works, why it matters and what can happen when its main processing parameters are not properly controlled.
1. What Is Heat Setting in Polyester-Lycra Fabric?
Heat setting is a textile finishing process in which fabric is exposed to controlled heat, usually while its dimensions and tension are regulated.
The objective is to reduce certain residual stresses and establish more stable fabric dimensions.
Polyester is a thermoplastic fibre.
This means its molecular structure can respond to elevated temperatures.
During heat setting, controlled thermal energy allows some molecular and structural rearrangement.
When the fabric is subsequently cooled, part of the established configuration is retained.
In polyester-Lycra fabric, the process must also account for elastane, which provides elastic stretch and recovery.
Elastane can be sensitive to excessive heat, prolonged exposure and unsuitable processing conditions.
Therefore, heat-setting parameters must be selected for the complete fabric composition rather than polyester alone.
2. Why Is Heat Setting Important for Polyester Knitted Fabric?
During knitting, dyeing and finishing, fabric experiences mechanical tension and dimensional changes.
These processes can introduce or redistribute stresses within the knitted structure.
Without suitable stabilization, the fabric may change dimensions during later processing or use.
Heat setting can help control:
-
Fabric width.
-
Dimensional stability.
-
Residual shrinkage.
-
Fabric surface appearance.
-
Structural consistency.
-
Certain aspects of stretch and recovery.
-
Fabric handling during cutting and stitching.
However, heat setting does not automatically correct every fabric defect.
Its effectiveness depends on yarn characteristics, knitted construction, previous processing and the selected conditions.
3. How Does Heat Setting Work?
Heat setting typically involves several controlled stages.
Stage 1: Fabric Feeding
The fabric enters the finishing machine under regulated conditions.
The operator controls feeding to avoid unnecessary distortion.
Stage 2: Width Setting
The fabric is brought to the required processing width.
On a stenter machine, the fabric edges are commonly held by clips or pins.
Stage 3: Heat Exposure
The fabric passes through heated chambers.
The temperature and residence time are selected according to the fabric specification.
Stage 4: Structural Stabilization
Heat allows certain stresses within the polyester yarn and knitted structure to relax or rearrange.
The degree of stabilization depends on processing conditions.
Stage 5: Cooling
Controlled cooling helps retain the established dimensions.
Stage 6: Fabric Collection
The fabric is delivered for further processing, inspection or packing.
Each stage can influence the final fabric characteristics.

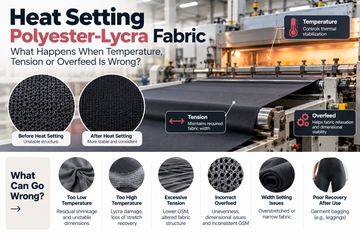

4. The Three Critical Heat-Setting Parameters
Three important variables are:
-
Temperature.
-
Fabric tension and width.
-
Overfeed.
These parameters interact.
Changing one may affect the influence of the others.
For example, increasing the fabric width under tension can reduce GSM, while changing overfeed can influence the fabric's lengthwise density.
This is why heat setting should be treated as a controlled engineering process rather than simply passing fabric through a hot machine.
5. What Happens When Heat-Setting Temperature Is Too Low?
Insufficient temperature may prevent the fabric from achieving the intended level of thermal stabilization.
Potential consequences include:
Residual Shrinkage
The fabric may retain stresses that become apparent during later heat exposure or washing.
Dimensional Instability
Fabric width or length may change during subsequent processing.
Inconsistent Fabric Behaviour
Different areas or production lots may respond differently if processing is not controlled.
Difficulty During Garment Manufacturing
Unstable fabric can create challenges during spreading, cutting and sewing.
However, low temperature does not always produce poor fabric quality.
The appropriate temperature depends on the specific polyester and elastane yarns, previous heat history and required end-use performance.
6. What Happens When Heat-Setting Temperature Is Too High?
Excessive heat can create serious problems in polyester-Lycra fabric.
The elastane component is particularly important.
Possible consequences include:
-
Reduced elastic recovery.
-
Loss of stretch performance.
-
Changes in fabric hand feel.
-
Yellowing or discoloration.
-
Thermal damage.
-
Dimensional changes.
-
Reduced durability.
The severity depends on temperature, exposure time, elastane chemistry and previous processing.
Why Is Elastane Sensitive to Heat?
Elastane is designed to provide high elastic extension and recovery.
Its performance depends on its polymer structure.
Excessive thermal exposure can alter or degrade that structure.
As a result, the fabric may become less capable of recovering after stretching.
This can contribute to garment bagging or loss of shape.
Heat damage is not necessarily reversible.
7. What Temperature Is Used for Heat Setting Polyester-Lycra?
There is no single correct temperature for every polyester-Lycra fabric.
Polyester-only fabrics may be processed at temperatures that are unsuitable for certain elastane-containing constructions.
Industrial heat-setting conditions vary according to:
-
Polyester yarn type.
-
Elastane grade.
-
Elastane percentage.
-
Fabric construction.
-
Previous heat history.
-
Machine design.
-
Residence time.
-
Desired dimensional stability.
Some polyester-elastane finishing processes operate in approximate ranges around 160–190°C, but this is only a broad industrial reference, not a recommended setting.
Certain elastane grades or fabric constructions may require different conditions.
The fabric and yarn suppliers' technical recommendations should always take priority.
Production settings should be validated through controlled trials.
8. Why Exposure Time Matters
Temperature alone does not determine the effect of heat setting.
The duration of heat exposure is also important.
For example, a fabric exposed to a certain temperature for a short period may behave differently from fabric exposed to the same temperature for a longer period.
Longer exposure can increase the extent of thermal stabilization.
However, excessive exposure may also increase the risk of material degradation.
The relationship between temperature and time must therefore be evaluated together.
Machine speed, chamber length and actual fabric temperature all influence the result.
9. What Is Fabric Tension During Heat Setting?
Fabric tension refers to the mechanical force applied to the fabric while it passes through the finishing process.
Tension can act in the lengthwise direction, widthwise direction or both.
In a stenter machine, fabric width is controlled while the material moves through the heated chambers.
The selected width and feeding conditions influence the final loop geometry.
Excessive tension may stretch the fabric beyond its intended processing dimensions.
Insufficient control may allow uneven movement or distortion.
The correct balance depends on the fabric construction and required finished specifications.
10. What Happens When Fabric Is Overstretched During Heat Setting?
Excessive stretching can alter the knitted structure.
Potential effects include:
Reduced GSM
When fabric is extended over a larger area, its mass per square metre may decrease.
Increased Fabric Width
Excessive width setting can produce a wider fabric than intended.
Changes in Stretch Behaviour
The relationship between knitted loops and elastane yarn may change.
Reduced Fabric Coverage
A more open knitted structure may provide less coverage.
Dimensional Instability
Fabric that is set under unsuitable tension may behave differently after relaxation or washing.
These outcomes depend on the actual processing conditions.
Not every increase in width causes unacceptable quality.
The objective is to achieve the specified width while maintaining suitable fabric performance.
11. Why Does GSM Change During Heat Setting?
GSM measures the mass of fabric per square metre.
If the same quantity of fabric is spread over a larger area, GSM decreases.
If the fabric contracts into a smaller area, GSM increases.
For example, consider a simplified hypothetical fabric sample.
Initial area = 1 square metre.
Mass = 220 grams.
Initial GSM = 220.
If the same material is stretched to cover 1.1 square metres without changing its mass:
New GSM = 220 ÷ 1.1
New GSM = 200
This illustrates why fabric dimensions influence GSM.
In real production, moisture, finishing chemicals, fabric relaxation and processing losses can also affect measured mass.
Therefore, the final GSM must be measured after suitable conditioning.
12. What Is Overfeed in a Stenter Machine?
Overfeed is a finishing parameter that describes the relationship between the rate at which fabric is delivered into the stenter and the rate at which it is transported through the machine.
In simplified terms, positive overfeed introduces fabric at a higher rate than the stenter chain transport speed.
This allows additional fabric length to enter the processing zone.
Overfeed can influence the fabric's lengthwise relaxation and loop arrangement.
It is particularly important in knitted fabrics because their structure can respond significantly to mechanical tension.
Simplified Overfeed Formula
A commonly used expression is:
Overfeed (%) = [(Fabric Feed Speed − Chain Speed) ÷ Chain Speed] × 100
For example:
Fabric feed speed = 22 metres per minute.
Chain speed = 20 metres per minute.
Overfeed = [(22 − 20) ÷ 20] × 100
Overfeed = 10%
Actual machine controls and displayed calculations may vary by equipment design.
13. What Happens When Overfeed Is Too Low?
Insufficient overfeed may result in greater lengthwise tension or reduced opportunity for relaxation.
Possible effects include:
-
Lower finished GSM.
-
Greater lengthwise extension.
-
Reduced fabric bulk.
-
Changes in loop geometry.
-
Unwanted dimensional behaviour after washing.
However, the result also depends on width setting, machine tension and fabric construction.
A low overfeed value is not automatically incorrect.
The required setting must be determined through production trials.
14. What Happens When Overfeed Is Too High?
Excessive overfeed can introduce too much fabric length relative to the machine transport rate.
Depending on the process, this may cause:
-
Increased fabric bulk.
-
Higher GSM.
-
Surface irregularities.
-
Creasing.
-
Uneven fabric feeding.
-
Changes in dimensional stability.
In some cases, excessive overfeed may make it difficult to maintain a smooth and consistent fabric surface.
The appropriate overfeed value depends on the desired finished properties.
15. How Temperature, Tension and Overfeed Work Together
These parameters should not be adjusted independently without considering their combined effects.
| Parameter | If Too Low | If Too High |
|---|---|---|
| Temperature | Insufficient stabilization | Thermal damage or unwanted property changes |
| Lengthwise tension | Possible uncontrolled relaxation or feeding issues | Excessive extension and altered recovery |
| Width setting | Fabric may finish too narrow | Fabric may become too open or low in GSM |
| Overfeed | Insufficient lengthwise relaxation | Excessive bulk or feeding instability |
| Exposure time | Inadequate thermal effect | Increased risk of overprocessing |
These are potential effects rather than guaranteed outcomes.
The correct operating window depends on the specific fabric.
16. How Heat Setting Affects Polyester-Lycra Stretch and Recovery
Stretch and recovery are critical properties in activewear.
During heat setting, polyester and elastane respond to the combination of temperature and mechanical loading.
Suitable processing can help establish stable fabric dimensions.
However, excessive tension or heat can change elastic behaviour.
For example, a fabric may retain its nominal width but exhibit poorer recovery after repeated stretching.
This is why finished fabric evaluation should include both dimensional stability and elastic recovery.
A fabric that meets GSM and width requirements may still be unsuitable for fitted garments if recovery performance is inadequate.
17. Can Incorrect Heat Setting Cause Knee Bagging in Leggings?
It can contribute.
Knee bagging occurs when fabric retains residual extension after repeated movement.
If heat-setting conditions negatively affect elastane performance or fabric structure, the material may exhibit poorer recovery.
However, knee bagging can also result from:
-
Elastane specification.
-
Knitting construction.
-
Garment fit.
-
Repeated stretching.
-
Fabric density.
-
Material aging.
Heat setting is one possible contributing factor, not the only explanation.
18. Can Heat Setting Affect Fabric Shine?
Yes.
Heat-setting conditions can influence surface appearance.
Changes in yarn arrangement, fabric smoothness and surface structure may affect how light is reflected.
In some cases, excessive thermal or mechanical processing may produce unwanted changes in appearance.
However, shine also depends on yarn type, filament shape, delustering agents and finishing treatments.
A shiny appearance does not automatically prove that the fabric was heat set incorrectly.
19. Can Heat Setting Reduce Spirality, Bowing and Skewing?
Appropriate finishing can help control certain structural distortions.
For example, stenter processing may include equipment designed to correct bowing or skewing before the fabric is thermally stabilized.
However, heat setting does not automatically eliminate these defects.
If the fabric enters the machine with significant distortion and is set without correction, some distortion may remain.
Likewise, severe yarn-torque-related spirality may not be fully corrected through heat setting alone.
Fabric alignment should be evaluated before and after finishing.
20. What Happens When Polyester-Lycra Is Heat Set Incorrectly?
The consequences may not become obvious immediately.
A fabric roll can appear acceptable after finishing but develop problems during later processing.
Possible symptoms include:
-
Unexpected shrinkage.
-
Width variation.
-
GSM inconsistency.
-
Reduced stretch recovery.
-
Garment bagging.
-
Uneven fabric appearance.
-
Colour or surface changes.
-
Distortion after washing.
For garment manufacturers, these issues can lead to cutting losses, fit problems and customer complaints.
21. How Can Manufacturers Evaluate Heat-Setting Quality?
A practical quality-control programme may include:
Width Measurement
Check whether the finished fabric meets the required width specification.
GSM Testing
Measure fabric mass per unit area after appropriate conditioning.
Dimensional Stability Testing
Evaluate changes after specified laundering or thermal exposure.
Stretch and Recovery Testing
Assess the elastic behaviour of the finished fabric.
Visual Inspection
Check for creases, distortion, surface irregularities and colour changes.
Lot Comparison
Compare production results with the approved reference fabric.
Process Documentation
Record temperature, machine speed, overfeed, width setting and relevant tension parameters.
These records can help identify the cause of quality variation.
22. Why Two Rolls With the Same GSM Can Perform Differently
Consider two hypothetical polyester-Lycra fabrics.
Both have:
-
220 GSM.
-
The same nominal composition.
-
The same finished width.
-
Similar colour.
-
Similar knitted construction.
However, their finishing conditions differ.
Fabric A is processed under validated heat-setting conditions.
Fabric B experiences excessive thermal exposure or unsuitable tension.
Both may meet the nominal GSM requirement, but Fabric B may exhibit reduced elastic recovery or dimensional instability.
This demonstrates why GSM alone cannot confirm that finishing has been performed correctly.
23. What Should Bulk Buyers Ask Their Fabric Supplier?
Before ordering polyester-Lycra fabric for fitted garments or sportswear, buyers can ask:
-
Has the fabric undergone suitable heat setting?
-
What dimensional stability results are available?
-
Has stretch and recovery been tested?
-
Does the fabric meet the required finished width?
-
Is GSM consistent across the supplied lot?
-
Has the fabric been evaluated after washing?
-
Does the bulk material match the approved sample?
-
Is the fabric suitable for the intended garment application?
Suppliers may not disclose every proprietary processing parameter.
However, performance results and agreed specifications can provide meaningful quality assurance.
24. Common Heat-Setting Mistakes
Mistake 1: Using One Temperature for Every Fabric
Different yarns and elastane grades may require different processing conditions.
Mistake 2: Focusing Only on GSM
A fabric can meet its GSM target while having poor recovery.
Mistake 3: Ignoring Overfeed
Overfeed influences lengthwise relaxation and fabric density.
Mistake 4: Setting Excessive Width
Excessive width setting can alter fabric coverage and mechanical behaviour.
Mistake 5: Ignoring Exposure Time
Temperature and residence time must be considered together.
Mistake 6: Skipping Finished-Fabric Testing
Machine settings alone do not establish final performance.
Mistake 7: Assuming Heat Setting Can Fix Every Defect
Some problems originate from yarn quality or knitting construction and cannot be fully corrected through finishing.
25. Frequently Asked Questions
What is heat setting in polyester-Lycra fabric?
Heat setting is a controlled thermal finishing process used to improve dimensional stability and establish suitable fabric characteristics.
Why is heat setting important for polyester?
Polyester is thermoplastic, so controlled heat can influence its structural stability and dimensional behaviour.
Can excessive heat damage Lycra?
Yes. Excessive temperature or exposure time can negatively affect elastane performance.
Does heat setting change GSM?
It can. Changes in fabric width, length and structure can affect mass per unit area.
What is overfeed in fabric finishing?
Overfeed is the controlled relationship between fabric feeding speed and machine transport speed, used to influence fabric relaxation and dimensional characteristics.
Does higher overfeed always increase GSM?
Not necessarily. GSM depends on the combined effects of width, length, fabric mass and processing conditions.
Can heat setting improve stretch recovery?
Suitable processing may improve dimensional stability and influence recovery, but excessive heat or tension can damage elastic performance.
Can heat setting prevent shrinkage?
It can reduce certain forms of residual shrinkage, but it does not guarantee zero dimensional change.
Can heat setting remove spirality?
It may help control some distortion, but severe yarn-torque-related spirality may remain.
Why do two polyester-Lycra fabrics with the same GSM perform differently?
Differences in yarn, knitting construction, elastane quality and finishing conditions can produce different mechanical and dimensional behaviour.
Conclusion
Heat setting is one of the most important finishing processes affecting polyester-Lycra fabric performance.
Temperature, tension and overfeed influence the final fabric's dimensions, GSM, surface appearance and elastic behaviour.
Insufficient stabilization may leave residual stresses, while excessive heat or tension can damage elastane or alter the knitted structure.
For manufacturers, the objective is not simply to reach a particular temperature or GSM.
It is to establish a validated combination of processing conditions that produces consistent fabric performance.
For clothing brands and bulk buyers, understanding heat setting helps explain why two fabrics with similar specifications may behave differently during washing, cutting, stitching and wear.
At Walrus – Yes India Can, we supply a wide range of polyester knitted fabrics for sportswear, T-shirts, leggings, uniforms, casualwear and garment manufacturing.
Explore our fabric collections and contact our team for bulk sourcing requirements.
Website: https://www.yesindiacan.in/
Contact: +91 90420 77722
